Portable mesh nebulizer NANO AIR PRO
An indispensable assistant in the family first aid kit
Mesh nebulizer NANO AIR PRO
The EVOLU NANO AIR PRO Nebulizer is a wireless, silent, USB rechargeable medicine device for delivering drugs to the respiratory tract. Suitable for use by people of all ages. Convenient to use at any time. The nebulizer sifts liquid through tiny holes in a membrane mesh, passing medication through approximately 1,000 precisely shaped microscopic holes, creating a fine aerosol mist (1–5 µm). When inhaled, the drug enters and is absorbed in the mouth, throat, trachea, bronchi, alveoli, etc. of the patient, in those places where it is most needed and will be effective. Suitable for the treatment of asthma, chronic bronchitis, and other respiratory diseases affecting the upper and lower respiratory tract, such as colds.
EVOLU NANO AIR PRO nebulizer is the latest generation of portable drug delivery systems activated by Mesh Technology. The nebulizer nozzle releases drugs through its unique geometry, forming a perfectly fine mist for targeted delivery to the affected area.
EVOLU NANO AIR PRO is a small, silent and lightweight device. Add the medicine and the device is ready - you can carry and use it anywhere.
Why is this inhaler ideal for you?
Here are some benefits of this product:
PRINCIPLE OF OPERATION
MICRO-WAVE MODE
SPRAY RATE ADJUSTMENT
SILENT
Allows you to inhale children while they sleep, and the sealed chamber of the inhaler allows you to inhale at a slight incline, without having to wake the child to perform the procedure.
EASY TO CLEAN, CHARGE AND MAINTAIN
The mediсation cup can be easily installed, removed and disassembled, which makes it easier to care for the product. Removable nozzles make this device easy to disassemble, clean and disinfect. It is compact and powered by a USB rechargeable battery.
SUITABLE FOR ALL AGES

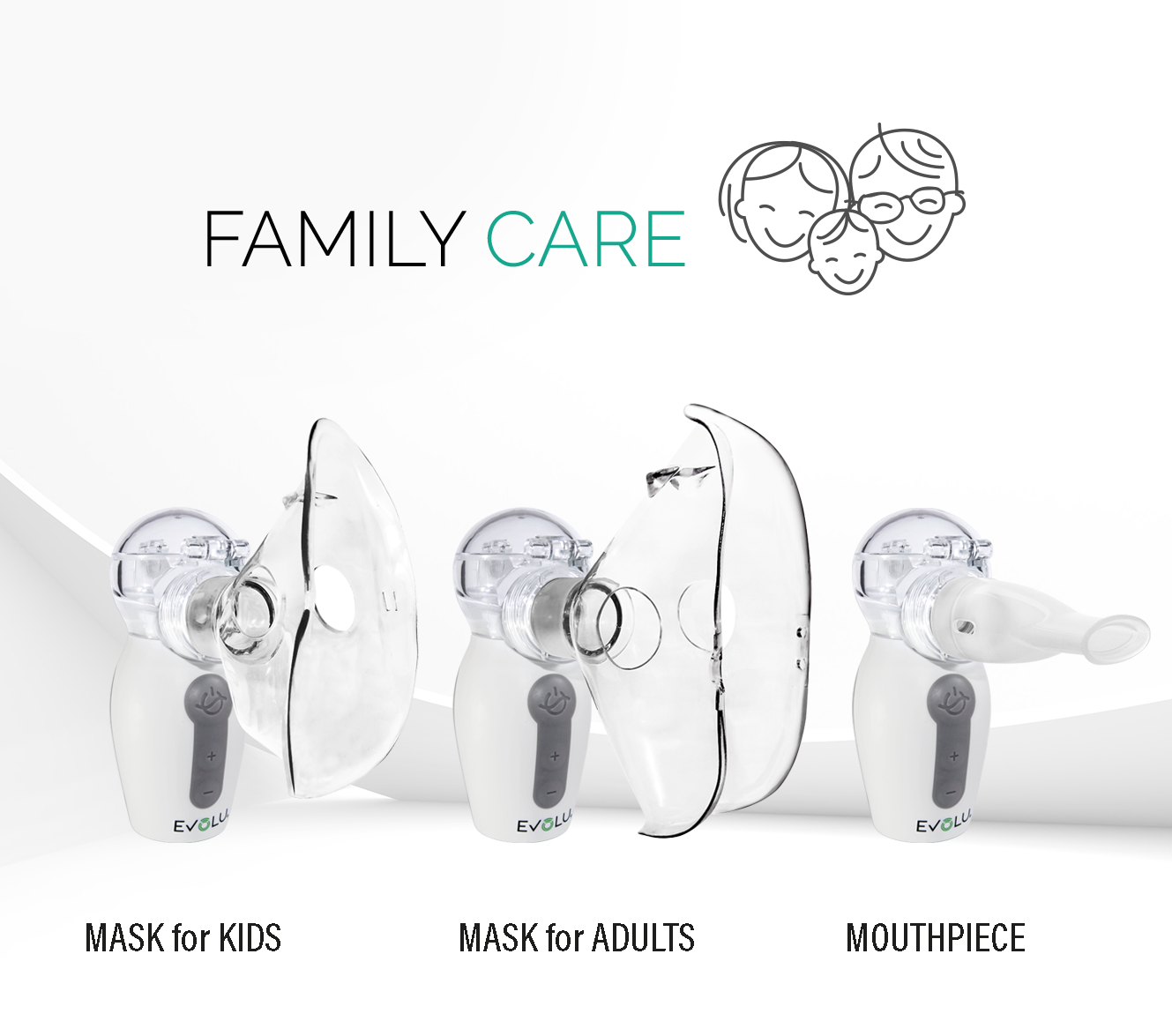

With complete accessories (1 mask for adults, 1 mask for children and 1 mouthpiece), small and practical size, reliable quality and sweet appearance, the device is perfect for the whole family.
FEATURES
- This device has a Micro-wave mode in which the spray rate is changed automatically;
- It is possible to regulate the rate of medication delivery independently;
- Great Portability - ergonomic design to be used on the go;
- Silent operation;
- No heat transfer to medication;
- High velocity aerosol delivery;
- Easy to use design;
- Runs nonstop for 10 minutes;
- Low power consumption. Runs for up to 60min on full battery;
- Supplied with easily interchangeable adult/child facemasks and mouthpiece;
- USB connection;
- 2 built-in lithium batteries;
- Power supply: DC 4.8 V or DC 5.0 V/1.0 A IEC 60601-1 with AC power adapter
- Nebulisation rate: 0.15 ml/min ~ 0.90 ml/min
- Operating frequency: 130 kHz ± 10 kHz
- Particle size: MMAD ＜ 5 μm
- Fine particle fraction (FPF) 83.13%.
- Drug container filling volume: 10 ml (Max)
- Loudness: ≤ 50 dB
- Product size/weight: 67.8 mm (L) × 47.5 mm (W) × 110.0 mm (H) / 126.7 g
Operating conditions:
- Temperature: +5 ℃ ~ +40 ℃
- Relative humidity: ≤ 80% R.H. without condensation
- Atmospheric pressure: 86.0 ~ 106.0 kPa
Storage / Transport Conditions
- Temperature: -20 ℃~ +55 ℃,
- Relative humidity: ≤ 80% R.H. without condensation.
- Atmospheric pressure: 86.0 ~ 106.0 kPa
- Inject the liquid: Open the medicine cap and add the liquid to the medicine container.
- Connect the accessories you want to the device: Nozzle, mask for children / adults.
- Take the device to your mouth and hold the mouthpiece tightly with your lips. When using the mask, place it over the nose and mouth without covering the eyes.
- Start the unit by pressing the START / STOP button.
- Main Unit;
- Medication cup;
- Adult mask;
- Child mask;
- Mouthpiece;
- User manual;
- Warranty card;
- Velvet bag;
- Micro USB cable;
What is the operating time of one cycle of the EVOLU NANO AIR PRO inhaler-nebulizer?
The atomizer can be set to run for up to 10 minutes and will switch off automatically after 10 minutes. If you need to continue using, turn on the product again using the ON/OFF switch. Make sure there is enough liquid in the medicine cup.
How often should the NANO AIR PRO inhaler-nebulizer be cleaned?
In order to avoid sticking of the holes in the sieve disc, it is necessary to clean the device after each use of the device. Please refer to the instructions for the cleaning method.
Which drug is more suitable for nebulization?
Consult a doctor for advice, only doctors can choose a drug for treatment.
Is it allowed to use essential oils and oil solutions for inhalation in the EVOLU NANO AIR PRO nebulizer?
The use of essential oils and oil-containing medicines is not allowed - this may damage the product.
Can an individual replace the batteries in the EVOLU NANO AIR PRO nebulizer himself?
The power system of the device is equipped by two rechargeable lithium batteries, do not dismantle, replace the batteries.
