Portable mesh nebulizer NANO AIR MINI
An indispensable assistant in the family first aid kit

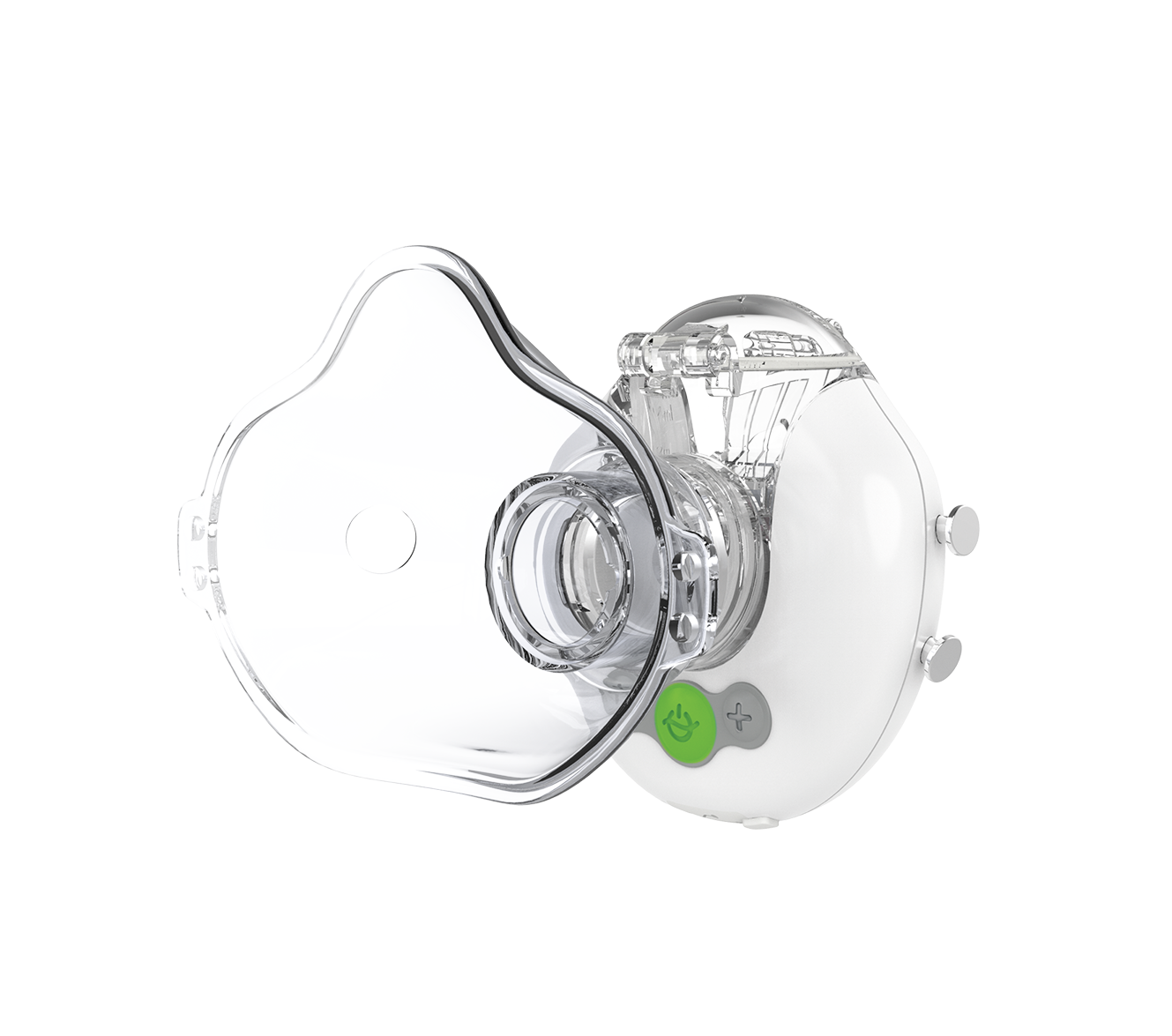

Mesh nebulizer NANO AIR MINI
The EVOLU NANO AIR MINI Nebulizer is a wireless, silent, USB rechargeable medicine device for delivering drugs to the respiratory tract. Suitable for use by people of all ages. Convenient to use at any time. The nebulizer sifts liquid through tiny holes in a membrane mesh, passing medication through apMINIximately 1,000 precisely shaped microscopic holes, creating a fine aerosol mist (1–5 µm). The average size of ultrafine aerosol particles is about 2.5 microns. When inhaled, the drug enters and is absorbed in the mouth, throat, trachea, bronchi, alveoli, etc. of the patient, in those places where it is most needed and will be effective. Suitable for the treatment of asthma, chronic bronchitis, and other respiratory diseases affecting the upper and lower respiratory tract, such as colds.
EVOLU NANO AIR MINI nebulizer is the latest generation of portable drug delivery systems activated by Mesh Technology. The nebulizer nozzle releases drugs through its unique geometry, forming a perfectly fine mist for targeted delivery to the affected area.
EVOLU NANO AIR MINI is a small, silent and lightweight device. Add the medicine and the device is ready - you can carry and use it anywhere.
Why is this inhaler ideal for you?
Here are some benefits of this product:
PRINCIPLE OF OPERATION
MICRO-WAVE MODE
SPRAY RATE ADJUSTMENT
AUTOMATIC ADJUSTMENT AND USER FLEXIBILITY
One of the key features of the EVOLU nano AIR MINI is its ability to automatically adjust to the user's breathing rate and depth. This ensures optimal treatment with each use. However, if you prefer to manually adjust the settings, this is also possible. EVOLU nano AIR MINI gives you complete control over the treatment process, allowing you to customize it according to your needs and preferences.
HANDS-FREE OPERATION WITH SILICONE STRAPS
Another significant advantage of the EVOLU nano AIR MINI is its innovative design with silicone straps. This nebulizer attaches to the head, freeing up your hands during treatment. Now you can comfortably read a book to your child, work on your laptop, or even play with toys without interrupting the treatment process. This is a true revolutionary step in healthcare.
THE IDEAL SOLUTION FOR RESPIRATORY CONDITIONS
The EVOLU nano AIR MINI is not just a nebulizer; it is an innovative solution for taking care of your health and the health of your loved ones. Thanks to its unique characteristics, it caters to the needs of both children and adults, making the treatment process more effective and comfortable.
FEATURES
- This device has a Micro-wave mode in which the spray rate is changed automatically;
- It is possible to regulate the rate of medication delivery independently;
- Great Portability - ergonomic design to be used on the go;
- Silent operation;
- No heat transfer to medication;
- High velocity aerosol delivery;
- Easy to use design;
- Runs nonstop for 10 minutes;
- Low power consumption. Runs for up to 60min on full battery;
- Supplied with easily interchangeable adult/child facemasks and mouthpiece;
- USB connection;
- Power Supply: DC 3.7 V (Li-ion Battery) or DC 5.0 V/1.0 A IEC 60601-1 with AC adapter.
- Power consumption: ＜4.0 W
- Nebulization Rate: 0.15 ml/min ~ 0.90 ml/min
- Particle Size: MMAD ＜ 5 μm
- Working Frequency: 130 kHz ± 10 kHz
- Noise: 50 dB
- Medication Cup Capacity: 6 ml (Max)
- Product Size/Weight: 72.5 mm (L) × 67.5 mm (W) × 50.5 mm (H) / 72 g
Working Environment:
- Temperature: +5℃ ~ +40℃
- Relative Humidity: ≤ 80% R.H. Non-condensing state
- Atmospheric pressure: 86.0 ~ 106.0 kPa
Storage / Transport Conditions
- Temperature: -20 ℃~ +55 ℃,
- Relative humidity: ≤ 80% R.H. without condensation.
- Atmospheric pressure: 86.0 ~ 106.0 kPa
- Inject the liquid: Open the medicine cap and add the liquid to the medicine container.
- Connect the accessories you want to the device: Nozzle, mask for children / adults.
- Take the device to your mouth and hold the mouthpiece tightly with your lips. When using the mask, place it over the nose and mouth without covering the eyes.
- Start the unit by pressing the START / STOP button.
- Main Unit;
- Medication cup;
- Adult mask;
- Child mask;
- Mouthpiece;
- User manual;
- Warranty card;
- Velvet bag;
- Micro USB cable;
What is the operating time of one cycle of the EVOLU NANO AIR MINI inhaler-nebulizer?
The atomizer can be set to run for up to 10 minutes and will switch off automatically after 10 minutes. If you need to continue using, turn on the product again using the ON/OFF switch. Make sure there is enough liquid in the medicine cup.
How often should the NANO AIR MINI inhaler-nebulizer be cleaned?
In order to avoid sticking of the holes in the sieve disc, it is necessary to clean the device after each use of the device. Please refer to the instructions for the cleaning method.
Which drug is more suitable for nebulization?
Consult a doctor for advice, only doctors can choose a drug for treatment.
Is it allowed to use essential oils and oil solutions for inhalation in the EVOLU NANO AIR MINI nebulizer?
The use of essential oils and oil-containing medicines is not allowed - this may damage the product.
Can an individual replace the batteries in the EVOLU NANO AIR MINI nebulizer himself?
The power system of the device is equipped by two rechargeable lithium batteries, do not dismantle, replace the batteries.
